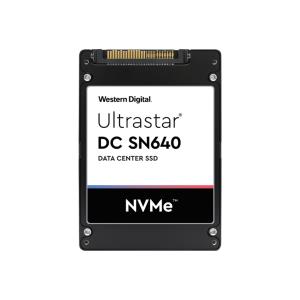

SSD - Ultrastar DC SN640 - 1920GB - Pci-e Gen 3.1 - U.2 2.5in - RI-0.8DW/D BICS4 TCG

Introduction

Accelerate Access to Critical Data for Data-Intensive Workloads and Applications
Ultrastar NVMe series SSDs perform at the speed of today's business needs. Enabling faster intelligence & access to critical data, these SSDs meet the growing digital demands of your business applications.

Performance NVMe Ultrastar DC SN840 SSDs deliver extreme performance & ultra-low latency to the top tier of enterprise storage. With proven dual-port NVMe architecture, these drives are best suited for performance demanding platforms including HPC servers, mission-critical applications and workloads that require superior read/write performance and low latency.

Mainstream NVMe Ultrastar DC SN640 SSDs are optimized for consistent quality of service and low latency for mixed random read/write workloads commonly generated by top enterprise applications such as virtualization, OLTP, NoSQL, web servers, file servers and mail servers. Ultrastar DC SN640 enables a seamless transition from SATA SSDs, delivering high performance for deeper insights & faster results for today's data intensive applications.

Features

Harmonized System (HS) code

84717070

NVMe version

1.3c

SSD form factor

2.5"

SSD capacity

1920 GB

Interface

PCI Express 3.1

Memory type

3D TLC

NVMe

Y

Component for

PC/notebook

Read speed

3300 MB/s

Write speed

2170 MB/s

Random read (4KB)

473000 IOPS

Random write (4KB)

63000 IOPS

Read latency

84 µs

Uncorrectable Bit Error Rate (UBER)

< 1 per 10^17 bits read

Mean time between failures (MTBF)

2000000 h

Power

Operating voltage

12 V

Power consumption (average)

5 W

Power consumption (idle)

5 W

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Weight & dimensions

Width

69.8 mm

Depth

100.5 mm

Height

7 mm

Weight

95 g
