Introduction

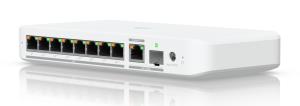

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.
*AC power adapter sold separately.
Management features
Switch type
Managed
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
8
10G Ethernet (copper) ports quantity
1
SFP+ module slots quantity
1
Power connector
DC-in jack
Network
10G support
Yes
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Data transmission
Switching capacity
60 Gbit/s
Throughput
30 Gbit/s
Forwarding rate
44.64 Mpps
Jumbo frames support
Yes
Security
Loop protection
Yes
Multicast features
Multicast support
Yes
Design
Form factor
Desktop/Wall-Mounting
Product colour
White
Housing material
Polycarbonate (PC)
Reset button
Yes
LED indicators
Activity, Link, PoE, Power, Status
Wall mountable
Yes
DIN rail mounting
Yes
Power
Power source
AC/DC/PoE
Power supply included
No
DC input voltage
54 V
Input current
3.9 A
Power consumption (max)
17 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet 4PPoE (PoE++) ports quantity
1
Power over Ethernet (PoE) voltage
57 V
Power over Ethernet (PoE) power per port
15.4 W
Total Power over Ethernet (PoE) budget
196 W
Operational conditions
Operating temperature (T-T)
-20 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
212.9 mm
Depth
99.4 mm
Height
33.5 mm
Weight
567 g
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
