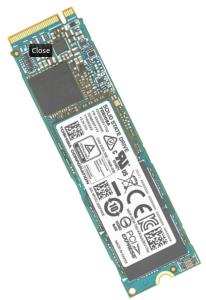

SSD Client Xg5 Series 256GB SATA Nvme Pci-e M.2 2280-S2 Non Sed Tlc

Introduction

XG5 series SSDs feature Toshiba’s latest 64-layer, 3D TLC (3-bit-per-cell) flash memory BiCS FLASH™. This new line of NVMe™ based client SSDs deliver high performance up to 3000 MB/s of sequential read and 2100 MB/s of sequential write with a maximum interface bandwidth of 32 GT/s. XG5 series SSDs also feature an SLC cache to accelerate burst type workloads, as well as improved power consumption comparing to prior generation XG3, making these SSDs an efficient option for high performance mobile computing.

XG5 Series SSDs are available in 256GB, 512GB and 1024GB capacities in compact single-sided M.2 2280 form factors.

Self-encrypting drive (SED) models supporting TCG Opal Version 2.01 are also offered, making the new series highly suited to address data security needs for commercial PCs or other business applications.

Features

NVMe version

1.2.1

SSD form factor

M.2

SSD capacity

256 GB

Interface

PCI Express 3.1

Memory type

TLC

NVMe

Y

Component for

PC/notebook

Hardware encryption

N

Read speed

2700 MB/s

Write speed

1050 MB/s

Certification

UL, cUL, TÜV, KC, FCC, BSMI, CE, RCM, IC, VCCI

Power

Operating voltage

3.3 V

Power consumption (read)

4 W

Power consumption (write)

4 W

Operational conditions

Operating temperature (T-T)

0 - 85 °C

Storage temperature (T-T)

-40 - 85 °C

Weight & dimensions

Width

22 mm

Depth

80 mm

Height

2.23 mm

Weight

7 g
