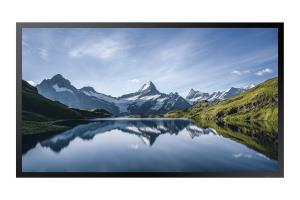

Smart Signage - Oh46b-s - 46in - 1920x1080

Display

Panel type

VA

Display diagonal

116.8 cm (46")

Display technology

LCD

Display resolution

1920 x 1080 pixels

Display brightness

3500 cd/m²

HD type

Full HD

Touchscreen

No

Response time

6 ms

Contrast ratio (typical)

6000:1

Dynamic contrast ratio marketing name

Mega Contrast

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.53 x 0.53 mm

Horizontal scan range

15 - 135 kHz

Vertical scan range

24 - 75 Hz

Glass thickness

5 mm

Glass film

AG/AR Film

RGB colour space

NTSC

Colour gamut

72%

Ports & interfaces

HDMI ports quantity

2

HDMI version

2.0

DVI port

No

USB port

Yes

USB ports quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Wi-Fi

No

Audio (L/R) out

1

RS-232 interface

Yes

Audio

Built-in speaker(s)

No

Design

Product design

Digital signage flat panel

Orientation

Horizontal/Vertical

Product colour

Black

Screen shape

Flat

VESA mounting

Yes

Panel mounting interface

995 x 500 mm

Bezel width (bottom)

2.49 cm

Bezel width (side)

2.49 cm

Bezel width (top)

2.49 cm

Bezel colour

Black

Performance

Purpose

Universal

Operating hours (hours/days)

24/7

HDCP

Yes

HDCP version

2.2

Power

Power consumption (typical)

430 W

Power consumption (sleep)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Computer system

Computer system

Yes

Computer system type

System on Chip (SoC)

Built-in processor

Yes

Operating system installed

Tizen 6.5

Weight & dimensions

Display width

1069 mm

Display depth

85 mm

Display height

623.6 mm

Display weight

36 kg

Packaging data

Package width

1156 mm

Package depth

200 mm

Package height

713 mm

Package weight

40.5 kg

Operational conditions

Operating temperature (T-T)

-30 - 50 °C

Operating relative humidity (H-H)

10 - 80%

Certificates

Certification

Class A 60950-1, 62368-1

Other features

Flash memory

8000 MB

Glass protection

Yes
