Introduction

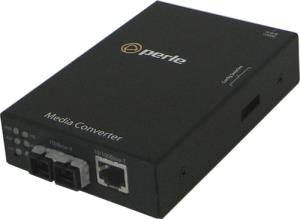

10/100 Fast Ethernet Stand-Alone Industrial Temperature Media Rate Converter.
Network
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Y
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Tx power (min)
-20 dBmW
Tx power (max)
-12 dBmW
Rx power (min)
-31 dBmW
Rx power (max)
-14 dBmW
Link budget
11 dB
Mean time between failures (MTBF)
607001 h
Design
Internal
N
LED indicators
Y
Product colour
Black
Safety
IEC 60825-1:2007
Certification
FCC, EN 55022 B, EN 55024 A
Power
Input voltage
12 V
Power consumption (typical)
2.1 W
Weight & dimensions
Weight
300 g
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 95%
Other features
Dimensions (WxDxH)
80 x 120 x 26 mm
