Introduction

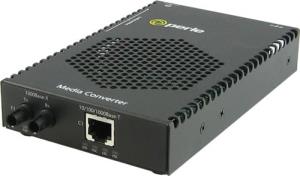

S-1110P-S2ST40 - 10/100/1000 Gigabit Ethernet Stand-Alone Media Rate Converter w/ PoE PSE. 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-EX 1310 nm single mode (ST) [40 km/24.9 miles], w/ AC Adapter
Network
Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-LX, 1000Base-T
Networking standards
IEEE 802.3u, IEEE 802.3bt
Ethernet LAN data rates
10,1000,100 Mbit/s
Duplex system
Full, Half
Cable types supported
Cat5
Performance
Maximum transfer distance
40000 m
Wavelength
1310 nm
Fiber mode structure
Single-mode
Features
Internal
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber optic connector
ST
Power
Input voltage
100 - 240 V
Power consumption (typical)
6 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
150 mm
Depth
95 mm
Height
26 mm
Weight
450 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
300 mm
Package depth
200 mm
Package height
70 mm
