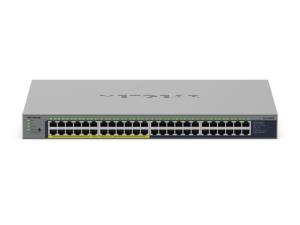

Unmanaged Smart Switch PoE+ GS748PP 48-Port GbE

Introduction

POWER-OVER-ETHERNET

24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.

PLUG-AND-PLAY

Simple set up with no software to install or configuration needed

NON-BLOCKING SWITCHING

Non-blocking switching architecture for maximum throughput at wire speed

DYNAMIC FANS

Optimal balance between noise and performance.

VERSATILE MOUNTING OPTIONS

Install your switch on your desktop or mount it to your rack with the hardware provided in the box

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

MIB support

RFC 1213 MIB II, RFC 1643, RFC 1493

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.1p, IEEE 802.3az

Copper ethernet cabling technology

10BASE-T

Full duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Ethernet LAN data rates

1000 Mbit/s

Data transmission

MAC address table

8000 entries

Maximum data transfer rate

1 Gbit/s

Jumbo frames support

Yes

Jumbo frames

12.288

Packet buffer memory

1.5 MB

Design

Rack mounting

Yes

Product colour

Grey

Redundant fans support

Yes

Number of fans

2 fan(s)

Safety

CE mark, cUL IEC950/EN60950

Performance

Mean time between failures (MTBF)

570972 h

Power

Power source

AC/DC

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

8 A

Power consumption (max)

410 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

380 W

Other features

Latency

2,900ns

Connectivity technology

Wired

Bandwidth

96 Gbit/s

I/O ports

48 x 10/100/1000 Mbps 4 x SFP

Electromagnetic emissions

CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick

Authentication method

802.1x

Warranty period

2 year(s)

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Operating altitude

0 - 3000 m

Heat dissipation

34.2 BTU/h

Weight & dimensions

Width

440 mm

Depth

310 mm

Height

43 mm

Weight

4.6 kg

Certificates

Compliance certificates

CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI
