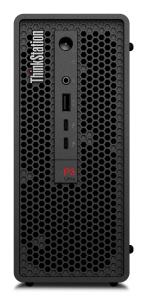

ThinkStation P3 Ultra SFF - i7 14700 - 32GB Ram - 512GB SSD - NVIDIA RTX A400 4GB - Win11 Pro - Qwerty UK

Introduction

Redefining the power of small
- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro® with Intel® Core™ processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i7

Processor generation

Intel® Core™ i7 (14th gen)

Processor model

i7-14700

Processor cores

20

Processor threads

28

Processor boost frequency

5.3 GHz

Processor frequency

2.1 GHz

Memory

Internal memory

32 GB

Maximum internal memory

192 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

2 x 16 GB

Memory slots

4x SO-DIMM

Memory clock speed

4800 MHz

Storage

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

Graphics

Discrete graphics card

Yes

Discrete GPU manufacturer

NVIDIA

On-board graphics card

Yes

Discrete graphics card model

NVIDIA RTX A400

Discrete graphics card memory

4 GB

Number of discrete graphics cards

1

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 770

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Antenna type

2x2

Bluetooth

Yes

Bluetooth version

5.1

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

DisplayPorts quantity

3

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Yes

Design

Chassis type

Mini Tower

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Performance

Motherboard chipset

Intel W680

Audio chip

Realtek ALC897-Q

Audio system

High Definition Audio

Trusted Platform Module (TPM)

Yes

Product type

Workstation

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Power

Power supply

300 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50/60 Hz

Weight & dimensions

Width

87 mm

Depth

223 mm

Height

202 mm

Weight

3.6 kg

Packaging content

Mouse included

Yes

Keyboard included

Yes
