Introduction

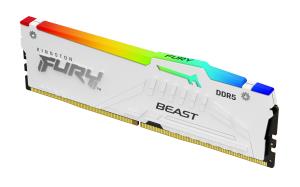

Kingston FURY KF556C36BWEA-16 is a 2G x 64-bit (16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMDŽ EXPO v1.0 and IntelŽ Extreme Memory Profiles (IntelŽ XMP) 3.0. Each module has been
tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Features
Memory data transfer rate
5600 MT/s
Buffered memory type
Unregistered (unbuffered)
On-Die ECC
Y
CAS latency
36
Internal memory
16 GB
Memory layout (modules x size)
1 x 16 GB
Internal memory type
DDR5
Memory clock speed
5600 MHz
Component for
PC
Memory form factor
288-pin DIMM
ECC
N
Memory voltage
1.25 V
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
Intel Extreme Memory Profile (XMP)
Y
Intel Extreme Memory Profile (XMP) version
3.0
AMD Extended Profiles for Overclocking (EXPO)
Y
AMD Extended Profiles for Overclocking (EXPO) version
1.0
SPD profile
Y
Programming power voltage (VPP)
1.8 V
Product colour
White
Cooling type
Heatsink
JEDEC standard
Y
Country of origin
China, Taiwan
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Weight & dimensions
Width
133.3 mm
Depth
7.11 mm
Height
42.2 mm
Weight
43.09 g
Packaging data
Package width
57.1 mm
Package depth
14 mm
Package height
171.4 mm
Package weight
63.55 g
Logistics data
Master (outer) case width
193 mm
Master (outer) case length
325.1 mm
Master (outer) case height
88.9 mm
Master (outer) case gross weight
1.82 kg
Products per master (outer) case
25 pc(s)
