Introduction

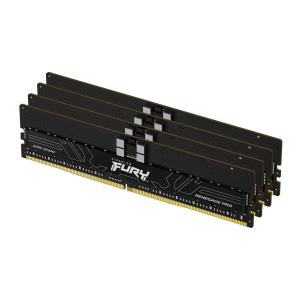

Kingston FURY KF548R36RBK4-64 is a kit of four 2G x 80-bit (16GB) DDR5-4800 CL36 SDRAM (Synchronous DRAM) 1Rx8, ECC memory module, based on ten 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-4800 at a low latency timing of 36-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers.
Features
Memory data transfer rate
4800 MT/s
Buffered memory type
Registered (buffered)
On-Die ECC
Y
CAS latency
36
Internal memory
64 GB
Memory layout (modules x size)
4 x 16 GB
Internal memory type
DDR5
Memory clock speed
4800 MHz
Component for
PC
Memory form factor
288-pin DIMM
ECC
Y
Memory ranking
8
Memory voltage
1.1 V
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
29.12 ns
Row Precharge Time (TRP)
15.8
Intel Extreme Memory Profile (XMP)
Y
Intel Extreme Memory Profile (XMP) version
3.0
Programming power voltage (VPP)
1.8 V
Product colour
Black
Cooling type
Heatsink
JEDEC standard
Y
Country of origin
China, Taiwan
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Sustainability
Sustainability certificates
RoHS
Doesn't contain
Halogen
Weight & dimensions
Height
31.2 mm
Depth
133.3 mm
Weight
72.8 g
Packaging data
Package width
104.1 mm
Package depth
167.6 mm
Package height
35.6 mm
Package weight
109.34 g
Logistics data
Master (outer) case width
207 mm
Master (outer) case length
469.9 mm
Master (outer) case height
105.4 mm
Master (outer) case gross weight
1.45 kg
Products per master (outer) case
10 pc(s)
Technical details
Compliance certificates
RoHS
