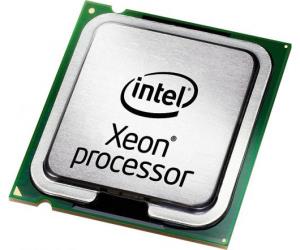

Quad-Core Xeon Processor E3-1225v2 3.2 GHz 8MB Cache - Tray (cm8063701160603)

Introduction

Intel® Xeon® Processor E3 Family
Intel® Xeon® processor E3 family-based servers give you smarter control of the things that matter to your business—increased sales, improved margins, and reduced risk. As your business becomes more sophisticated, so do your technology needs—real servers give you benefits that a desktop PC used as a server cannot.

The Intel® Xeon® processor E3-1200 v2 product family offers up to 32% more energy efficient performance than previous generation Intel® Xeon® processor-based servers.

A number of technologies have been added or upgraded to improve I/O bandwidth, gain faster access to commonly used programs and files, allow applications to run faster, increase data throughput, and improve the performance of disc-intensive retrieval applications.

Built-in, advanced security features help you deflect catastrophic security breaches, and redundant storage capabilities protect your business data in the event of a hard drive failure.

The Intel® Xeon® processor platform is built for all day, every day reliability. Centralized data backup and critical security updates further help reduce the risk of costly downtime.

Servers featuring Intel® Xeon® processors have intelligent performance that adapts to your needs, giving you the reliability you need today with plenty of room to grow for tomorrow. With built-in 24/7 dependability and advanced security features, Intel®-based servers help you avoid costly business interruptions and potentially catastrophic security breaches. Spend your time focused on your business—respond more quickly to customers, opportunities, and trends—with Intel®-based servers, a smart investment in your business future.

Processor

Processor manufacturer

Intel

Processor model

E3-1225V2

Processor base frequency

3.2 GHz

Processor family

Intel® Xeon® E3 V2 Family

Processor cores

4

Processor socket

LGA 1155 (Socket H2)

Processor lithography

22 nm

Processor series

Intel Xeon E3-1200 v2

Processor threads

4

System bus rate

5 GT/s

Processor operating modes

64-bit

Processor boost frequency

3.6 GHz

Processor cache

8 MB

Processor cache type

Smart Cache

L3 cache speed

3.20 GHz

Thermal Design Power (TDP)

77 W

Box

N

Cooler included

N

Compatible chipsets

Intel® C202, Intel® C204, Intel® C206, Intel® C216

Stepping

E1

Bus type

DMI

CPU multiplier (bus/core ratio)

32

Memory bandwidth supported by processor (max)

25.6 GB/s

Processor codename

Ivy Bridge

Processor code

SR0PJ

Processor ARK ID

65733

Memory

Maximum internal memory supported by processor

32 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

1333,1600 MHz

Memory channels

Dual-channel

ECC

Y

Memory bandwidth (max)

25.6 GB/s

Graphics

On-board graphics card

N

On-board graphics card model

Intel® HD Graphics P4000

On-board graphics card base frequency

650 MHz

On-board graphics card dynamic frequency (max)

1250 MHz

Number of displays supported (on-board graphics)

3

Features

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

Y

Market segment

Server

Use conditions

PC/Client/Tablet

PCI Express slots version

3.0

PCI Express configurations

1x16,1x4,2x8,1x8,3x4

Supported instruction sets

SSE4.1,SSE4.2,AVX

CPU configuration (max)

1

Embedded options available

Y

PCI Express CEM revision

3.0

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

N

Intel® Identity Protection Technology (Intel® IPT)

Y

Intel® Turbo Boost Technology

2.0

Intel® Quick Sync Video Technology

Y

Intel® InTru™ 3D Technology

Y

Intel FDI Technology

Y

Intel® Clear Video HD Technology (Intel® CVT HD)

Y

Intel Fast Memory Access

Y

Intel Flex Memory Access

Y

Intel® Smart Cache

Y

Intel® AES New Instructions (Intel® AES-NI)

Y

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel® Turbo Boost Technology 2.0 frequency

3.6 GHz

Intel® Transactional Synchronization Extensions

N

Intel Enhanced Halt State

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel Demand Based Switching

Y

Intel TSX-NI

N

Intel 64

Y

Intel Identity Protection Technology version

1.00

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel TSX-NI version

0.00

Conflict-Free processor

N

Intel® vPro™ Platform Eligibility

Y

Technical details

Bus speed

5 GT/s

Product family

Intel Xeon Processor E3 v2 Family

Last change

63903513

Supported memory types

DDR3-SDRAM

Processor brand name

Intel Xeon

Maximum memory

32.77 GB

Status

Launched

Product type

Processor

Processor cache

8192 KB

Launch date

Q2'12

Bus type units

GT/s

Bus bandwidth

5

Packaging data

Package type

Retail box

Weight & dimensions

Processor package size

37.5 mm

Other features

Intel® Virtualization Technology (Intel® VT)

VT-d,VT-x

Compatibility

Intel S1200BTSR, S1200KPR, S1200BTLR, S1200BTLRM, R1304BTLSHBNR, R1304BTLSFANR, R1304BTSSFANR, P4304BTLSHCNR, P4304BTLSFCNR, P4304BTSSFCNR

Maximum internal memory

32.77 GB

Maximum internal memory

33554 MB
