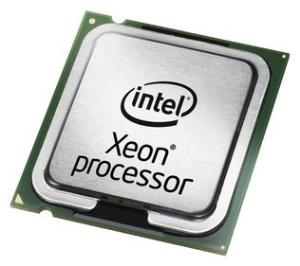

Intel Xeon Processor E3-1220l 2.2 GHz 3MB Cache Oem

Introduction

Intel® Xeon® Processor E3 Family
Intel® Xeon® processor E3 family-based servers give you smarter control of the things that matter to your business—increased sales, improved margins, and reduced risk. As your business becomes more sophisticated, so do your technology needs—real servers give you benefits that a desktop PC used as a server cannot.

The Intel® Xeon® processor E3-1200 v2 product family offers up to 32% more energy efficient performance than previous generation Intel® Xeon® processor-based servers.

A number of technologies have been added or upgraded to improve I/O bandwidth, gain faster access to commonly used programs and files, allow applications to run faster, increase data throughput, and improve the performance of disc-intensive retrieval applications.

Built-in, advanced security features help you deflect catastrophic security breaches, and redundant storage capabilities protect your business data in the event of a hard drive failure.

The Intel® Xeon® processor platform is built for all day, every day reliability. Centralized data backup and critical security updates further help reduce the risk of costly downtime.

Servers featuring Intel® Xeon® processors have intelligent performance that adapts to your needs, giving you the reliability you need today with plenty of room to grow for tomorrow. With built-in 24/7 dependability and advanced security features, Intel®-based servers help you avoid costly business interruptions and potentially catastrophic security breaches. Spend your time focused on your business—respond more quickly to customers, opportunities, and trends—with Intel®-based servers, a smart investment in your business future.

Processor

Processor manufacturer

Intel

Processor model

E3-1220L

Processor base frequency

2.2 GHz

Processor family

Intel® Xeon® E3 Family

Processor cores

2

Processor socket

LGA 1155 (Socket H2)

Component for

Server/workstation

Processor lithography

32 nm

Processor series

Intel Xeon E3-1200

Processor threads

4

System bus rate

5 GT/s

Processor operating modes

64-bit

Processor boost frequency

3.4 GHz

Processor cache

3 MB

Processor cache type

Smart Cache

Thermal Design Power (TDP)

20 W

Box

N

Cooler included

N

Bus type

DMI

CPU multiplier (bus/core ratio)

22

Memory bandwidth supported by processor (max)

21 GB/s

Processor codename

Sandy Bridge

Processor ARK ID

53401

Memory

Maximum internal memory supported by processor

32 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

1066,1333 MHz

Memory channels

Dual-channel

ECC

Y

Graphics

On-board graphics card

N

Features

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

Y

Market segment

Server

Maximum number of PCI Express lanes

20

PCI Express slots version

2.0

Supported instruction sets

SSE4.1,SSE4.2,AVX

CPU configuration (max)

1

Embedded options available

N

PCI Express CEM revision

2.0

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

Images Type Map

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® Identity Protection Technology (Intel® IPT)

Y

Intel® Turbo Boost Technology

2.0

Intel® Quick Sync Video Technology

N

Intel® InTru™ 3D Technology

N

Intel® Wireless Display (Intel® WiDi)

N

Intel FDI Technology

N

Intel® Clear Video HD Technology (Intel® CVT HD)

N

Intel Fast Memory Access

Y

Intel Flex Memory Access

Y

Intel® Smart Cache

Y

Intel® AES New Instructions (Intel® AES-NI)

Y

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel® Turbo Boost Technology 2.0 frequency

3.4 GHz

Intel Enhanced Halt State

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel Demand Based Switching

Y

Intel 64

Y

Intel Identity Protection Technology version

1.00

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel® vPro™ Platform Eligibility

Y

Operational conditions

Tcase

77.5 °C

Technical details

Born on date

Q2'11

Bus bandwidth

5

Bus type units

GT/s

Launch date

Q2'11

Processor cache

3072 KB

Product name

Intel Xeon E3-1220L (3M Cache, 2.20 GHz)

Product type

Processor

Status

Discontinued

Maximum memory

32 GB

Processor brand name

Intel Xeon

Supported memory types

DDR3-SDRAM

Last change

63903513

Product family

Intel Xeon Processor E3 Family

Bus speed

5 GT/s

Weight & dimensions

Processor package size

37.5 x 37.5 mm

Other features

Intel® Virtualization Technology (Intel® VT)

VT-d,VT-x

Maximum internal memory

32 GB

Maximum internal memory

32768 MB

Cache memory

3 MB
