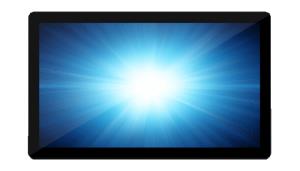

I-series 2 Black - 22in - i5 - 8GB Ram - 256GB SSD - Antiglare - Win10

Introduction

I-Series 2 with Intel
Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform—all in a sleek, yet durable fixed tablet form factor.

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.

Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Feature-rich
Intel platform.

Windows, ChromeOS
Flex or Linux.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10, ChromeOS Flex or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.

Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.

Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.

Display

Display diagonal

54.6 cm (21.5")

Display resolution

1920 x 1080 pixels

Touchscreen

Yes

HD type

Full HD

LED backlight

Yes

Touch technology

Multi-touch

Native aspect ratio

16:9

Display brightness

250 cd/m²

Panel type

TFT-LCD

Response time

25 ms

Screen shape

Flat

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor model

i5-9500T

Processor cores

6

Processor threads

6

Processor boost frequency

3.6 GHz

Processor frequency

2.2 GHz

Processor cache

9 MB

Processor base power

35 W

Memory

Internal memory

8 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

32 GB

Memory slots

2

Memory slots type

SO-DIMM

Memory clock speed

2666 MHz

Memory layout (slots x size)

1 x 8 GB

Memory form factor

DIMM/SO-DIMM

Storage

Total storage capacity

256 GB

Storage media

SSD

Total SSDs capacity

256 GB

Number of SSDs installed

1

SSD capacity

256 GB

SSD interface

SATA

SSD form factor

M.2

Optical drive type

No

Graphics

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card

Yes

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel® UHD Graphics 610

Audio

Built-in speaker(s)

Yes

Number of speakers

2

RMS rated power

4 W

Camera

Built-in camera

No

Network

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Headphone outputs

1

Design

Product colour

Black

VESA mounting

Yes

Panel mounting interface

75 x 75 mm

Performance

Product type

All-in-One tablet PC

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Software

Operating system architecture

64-bit

Operating system installed

Windows 10 Enterprise

Power

AC adapter power

100 W

AC adapter frequency

50-60 Hz

AC adapter input voltage

100 - 240 V

Weight & dimensions

Width (without stand)

384.2 mm

Depth (without stand)

246.4 mm

Height (without stand)

43.8 mm

Weight (without stand)

2.2 kg

Package width

462 mm

Package depth

216 mm

Package height

346 mm

Package weight

4.3 kg

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

5 - 95%

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), CB, UKCA, CCC, China Compulsory Certification (CCC), VCCI, Norma Oficial Mexicana (NOM)
