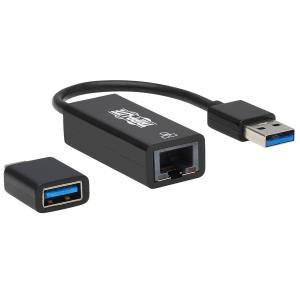

TRIPP LITE USB-C, USB-A to RJ45 Gigabit Ethernet Network Adapter (2xM/F), USB 3.2 Gen 1, Black

Introduction

USB to Gigabit Ethernet Adapter Connects You to a Wired 1G Network
This USB network adapter instantly connects your computer, notebook, MacBook Pro or Windows laptop to a wired Gigabit network through either a USB-A or USB-C port. No internal Ethernet card is required. Ideal for settings in which no Wi-Fi is available or when a wired connection offers faster speeds, this USB 3.2 Gen 1 adapter lets you enjoy true 10/100/1000 Mbps Ethernet speeds for uploading and downloading large files and streaming audio/video without buffering.

Plug-and-Play Operation Gets You Online Immediately
This bus-powered network adapter requires no external power source. Just connect the built-in USB-A plug to your computer (a USB-C adapter is included for connecting a USB-C or Thunderbolt 3 port), and use a Cat6 cable (such as Tripp Lite's N201-Series) to connect the RJ45 end to a network. LEDs indicate when the adapter is connected to your computer and your computer is connected to a network.

Complies with Current IEEE Standards
The U336-000-GB-CA is compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. It supports full duplex with IEEE 802.3x flow control and half duplex with back-pressure flow control, as well as 10/100/1000 auto-sensing, Wake-on-LAN and IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading. The compact unit fits easily into a pocket, purse, backpack or laptop bag for instant file transfers where needed. It's compatible with Windows and macOS.

Ports & interfaces

Connectivity technology

Wired

Host interface

USB

Interface

Ethernet

Ethernet LAN (RJ-45) ports

1

USB ports quantity

1

USB connector form factor

Straight

USB version

3.2 Gen 2 (3.1 Gen 2)

Network

Maximum data transfer rate

1000 Mbit/s

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000BaseT(X)

Wi-Fi

N

Design

Component for

Notebook

Product colour

Black

Internal

N

Country of origin

Vietnam

Certification

RoHS, REACH, CE, FCC, WEEE

Power

USB powered

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

Packaging data

Package width

100.1 mm

Package depth

20 mm

Package height

119.9 mm

Package weight

50 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332266931

Master (outer) case width

255 mm

Master (outer) case length

119.9 mm

Master (outer) case height

115.1 mm

Master (outer) case gross weight

700 g

Products per master (outer) case

10 pc(s)

Other features

Harmonized System (HS) code

8517.62.0090
