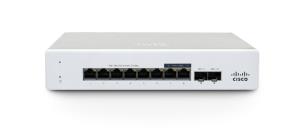

Introduction
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Network
Networking standards
IEEE 802.1x
10G support
Yes
Port mirroring
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Virtual LAN features
Voice VLAN
Data transmission
Switching capacity
20 Gbit/s
Security
DHCP features
DHCP snooping
IGMP snooping
Yes
Security algorithms
SNMP
Authentication
MAC-based authentication
Authentication type
RADIUS
Multicast features
Multicast support
Yes
Multicast features
Multicast traffic suppression
Protocols
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)
Design
Rack mounting
Yes
Form factor
1U
Product colour
White
LED indicators
Yes
Performance
Firmware upgradeable
Yes
Mean time between failures (MTBF)
1927507 h
Power
Power source
DC
Power supply included
Yes
DC input voltage
12 V
Input current
2.5 A
Power consumption (max)
8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
222 mm
Depth
150 mm
Height
28 mm
Weight
880 g
