Introduction

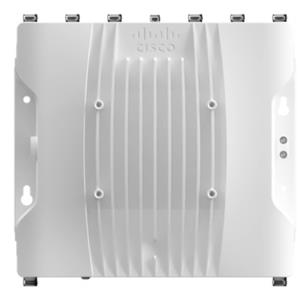

The Catalyst IW9167E-HZ has all the capabilities, benefits, and features of the IW9167E Heavy Duty Access Point with the additional capability to deploy in Hazardous Locations (HAZLOC) around the world. Equipped with hardened ports and certified by UL, ATEX, and IECEx, the Catalyst IW9167E Heavy Duty Access Point for Hazardous Locations brings Wi-Fi 6, Wi-Fi 6E, and URWB into regulated explosive environments for the first time.

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Maximum data transfer rate

7800 Mbit/s

Ethernet LAN data rates

100,1000,2500,5000 Mbit/s

Networking standards

IEEE 802.3at, IEEE 802.3bt, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11h, IEEE 802.11d, IEEE 802.11v, IEEE 802.11u, IEEE 802.11k, IEEE 802.11r, IEEE 802.11i, IEEE 802.1x

Bluetooth

Yes

Bluetooth version

5.1

Bluetooth Low Energy (BLE)

Yes

MIMO

Yes

MIMO type

Multi User MIMO

Wi-Fi Multimedia (WMM)/(WME)

Yes

Maximal-Ratio Combining (MRC)

Yes

Cyclic Shift Diversity (CSD)

Yes

Dynamic Frequency Selection (DFS)

Yes

Security

Security algorithms

AES, TKIP, WPA3, WPA2, WPA, EAP-TLS, EAP-TTLS, PEAP

Management features

Firmware upgradeable

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

SFP/SFP+ slots quantity

1

DC-in jack

Yes

Power

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE+

DC voltage range

24 - 48 V

Design

Placement

Ceiling, Wall

Product colour

White

International Protection (IP) code

IP66, IP67

Reset button

Yes

LED indicators

System

Antenna

Antenna type

External

Number of connectors

9

Performance

Flash memory

1024 MB

Internal memory

2048 MB

Certificates

Compliance certificates

UL, ATEX, IECEx

Weight & dimensions

Width

292 mm

Depth

267 mm

Height

71 mm

Weight

4.3 kg

Packaging content

Quantity per pack

1 pc(s)

Operational conditions

Operating relative humidity (H-H)

0 - 100%

Operating temperature (T-T)

-40 - 70 °C

Storage temperature (T-T)

-40 - 85 °C
