1000base-t Sfp Industrial Temp

Introduction

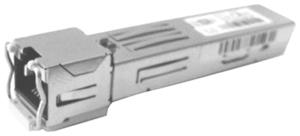

The industry-standard Cisco Small Form-Factor Pluggable (SFP) Gigabit Interface Converter (Figure 1) links your switches and routers to the network. The hot-swappable input/output device plugs into a Gigabit Ethernet port or slot. Optical and copper models can be used on a wide variety of Cisco products and intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Performance

SFP transceiver type

Copper

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Fiber optic connector

RJ-45

Maximum transfer distance

100 m

Auto MDI/MDI-X

Yes

Operational conditions

Minimum operating temperature

-40 °C

Maximum operating temperature

85 °C
