Business S 150ax Access Point Wi-Fi 6

Introduction

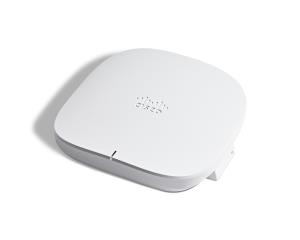

The Cisco Business 150AX Access Point delivers industry-leading wireless performance with support for the latest Wi-Fi 6 standard, IEEE’s 802.11ax (Figure 1). It also meets the growing flexibility of wireless networks by introducing mesh technology which enables scalable expansion of the network where network cabling may not exist—all while delivering a simple user experience, deployable with the Cisco Business Mobile app or the integrated WebUI.

The 150AX access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated Wi-Fi 6 capabilities, while being backwards compatible with the previous 802.11ac Wave 1 or Wave 2 standards.

Design

Country of origin

China

Placement

Ceiling

Product colour

White

Market segment

Business

Packaging data

Package width

190.5 mm

Package depth

200.7 mm

Package height

101.6 mm

Package weight

950 g

Features

2.4 GHz

Y

5 GHz

Y

6 GHz

N

Maximum data transfer rate

1200 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

MIMO

Y

MIMO type

Multi User MIMO

Security

Security algorithms

EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA, WPA2, WPA3

Logistics data

Quantity per pack

1 pc(s)

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE)

Y

Antenna

Antenna type

Internal

Performance

Built-in processor

Y

Flash memory

512 MB

Internal memory

1024 MB

Weight & dimensions

Width

150.4 mm

Depth

39.9 mm

Height

150.4 mm

Weight

330 g

Operational conditions

Operating relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-30 - 70 °C

Storage relative humidity (H-H)

0 - 95%

Technical details

Products per shipping (inner) case

1 pc(s)
