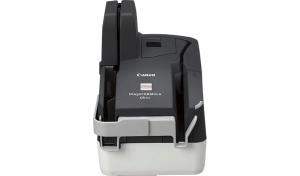

Imageformula Cr-l1 Uv - Document Scanner - Cmos / Cis - Duplex - 108 X 228 Mm - 300 Dpi - Up T

Scanning

Maximum scan size

108 x 228 mm

Optical scanning resolution

300 x 300 DPI

Colour scanning

Yes

Duplex scanning

Yes

Output colour depth

24 bit

Greyscale levels

256

Design

Product colour

Black, Grey

Built-in display

No

Performance

Sensor type

CMOS CIS

Light source

RGB LED / UV LED

Daily duty cycle (max)

3000 pages

Input capacity

Auto document feeder (ADF) input capacity

50 sheets

Paper handling

Long-paper mode

Yes

Media thickness (min)

0.08 mm

Card thickness (max)

0.2 mm

Auto Document Feeder (ADF) media weight

64 - 157 g/m²

Maximum scan width

10.9 cm

Maximum scan length

22.9 cm

Ports & interfaces

USB port

Yes

USB version

2.0

Standard interfaces

USB 2.0

Power

Power consumption (typical)

15.8 W

Input voltage

230 V

Power consumption (sleep)

2.3 W

Weight & dimensions

Width

140 mm

Depth

223 mm

Height

188 mm

Weight

2.1 kg

Packaging content

Bundled software

Ranger driver + IQA, Canon Scanning Utility

System requirements

Windows operating systems supported

Windows 10, Windows 7, Windows 8.1

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T)

10 - 32.5 °C

Operating relative humidity (H-H)

20 - 80%
