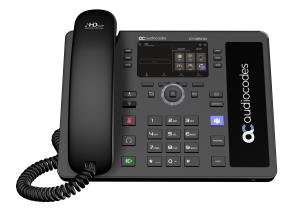

Teams C435HD-R IP-Phone PoE GbE Black

Introduction

The AudioCodes C435HD IP phone is a Microsoft Teams-native entry level/common area phone designed to support the next generation of enterprise collaboration technologies. Equipped with a 4.3” color LCD screen, the C435HD supports Microsoft Teams out-of-the-box to deliver feature-rich unified communications.

AudioCodes IP phones are offered as part of a comprehensive Managed IP Phone solution, defined as an IT-managed entity that delivers end-to-end lifecycle management of edge devices.

Design

Product type

IP Phone

Handset type

Wired handset

Product colour

Black

Wall mountable

Y

Performance

Operating system installed

Android

Operating system version

9.0

Dual-Tone Multi-Frequency (DTMF) modes

SIP info

Phone features

Answering machine

Y

Call waiting

Y

Call hold

Y

Call forwarding

Y

Conference call

Y

Redialing

Y

Do not disturb function

Y

Caller ID

Y

Call park

Y

Call pick up

Y

Full duplex

Y

Call transfer

Y

Message-waiting indicator (MWI)

Y

Management features

Integrated voicemail

Y

Volume control

Buttons

Keypad number of keys

8

Display

Display

LCD

Display diagonal

10.9 cm (4.3")

Touchscreen

Y

Audio

Speakerphone

Y

Microphone mute

Y

Voice codecs

G.711, G.722, G.729, Silk

Echo cancellation

Y

Voice activity detection

Y

Adaptive jitter buffers

Y

Packet loss concealment (PLC)

Y

Network

Ethernet LAN

Y

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

N

Bluetooth

N

Supported network protocols

UDP/TCP, NTP, DNS/SRV

Quality of Service (QoS) support

Y

Security algorithms

HTTPS, SRTP, TLS

Networking standards

IEEE 802.3af

Ports & interfaces

Headset connectivity

1

Ethernet LAN (RJ-45) ports

2

DC-in jack

Y

Cable lock slot

Y

Power

Power over Ethernet (PoE)

Y

AC adapter input voltage

100 - 240 V

Input current

2 A

AC adapter output voltage

12 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Weight & dimensions

Width

249 mm

Depth

132 mm

Weight

960 g

Height (min)

16.1 cm

Height (max)

18.9 cm

Package width

316 mm

Package depth

255 mm

Package height

95 mm

Package weight

1.39 kg

Packaging content

Number of handles included

1 pc(s)

Manual

Y

Cables included

LAN (RJ-45)
