Introduction

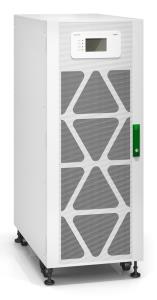

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 160 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management.
Features
UPS topology
Double-conversion (Online)
Output power capacity
160 kVA
Output power
160000 W
Waveform
Sine
Input operation voltage (min)
342 V
Input operation voltage (max)
477 V
Input frequency
40 - 70 Hz
Output frequency
50/60 Hz
Output voltage regulation
1%
Maximum current
262 A
Heat dissipation
8000 BTU/h
Number of input phases
3
Number of output phases
3
Power factor
0.99
Input current Total Harmonic Distortion (THD)
3%
Noise level
72 dB
Battery
Battery technology
Sealed Lead Acid (VRLA)
Design
Product colour
White
Control type
Touch
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 55 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 1500 m
Non-operating altitude
0 - 15240 m
Technical details
Minimum order quantity
1 pc(s)
Packaging content
Manual
Yes
Power
Input current (max)
262 A
Weight & dimensions
Width
500 mm
Depth
850 mm
Height
1300 mm
Weight
227 kg
Packaging data
Package width
975 mm
Package depth
625 mm
Package height
1500 mm
Package weight
257 kg
Logistics data
Warranty period
1 year(s)
