Introduction

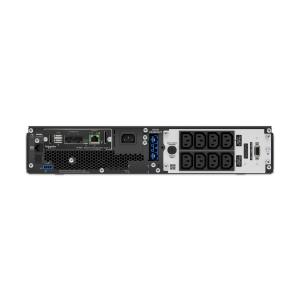

APC Smart-UPS On-Line, 1000VA, Rackmount 2U, 230V, 8x C13 IEC outlets, Network Card, W/ rail kit, W/O Lithium-ion external battery
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
Technical details
Total carbon footprint (kg of CO2e)
1788.84
Sustainable packaging
No
Packaging recycled materials
Recycled cardboard
SCIP number
b2b22a56-41f2-497e-9ea6-cf093b3b8bd3
Sustainability compliance
Yes
Compliance certificates
EAC, RCM, REACH, VDE
Preferred mounting position
no preference
Take-back system
No
Packaging without single use plastic
No
Features
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
UPS topology
Double-conversion (Online)
Output power capacity
1 kVA
Output power
900 W
Waveform
Sine
Input operation voltage (min)
80 V
Input operation voltage (max)
150 V
Input frequency
40 - 70 Hz
Surge energy rating
340 J
Heat dissipation
400 BTU/h
Noise level
50 dB
Battery
Battery replacement accessibility
End-user
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Certification
CE; EAC; RCM; VDE; UK PSTI
Logistics data
Customs product code (TARIC)
8504409590
Country of origin
Philippines
Other features
Input connection type
IEC 60320 C14
Output connection type
8 IEC 60320C13
Output voltage
230 V
Mounting
vertical
Ports & interfaces
AC outlet types
C13 coupler
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100Base-T
Design
Form factor
Rackmount
Rack capacity
2U
Product colour
Black
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15420 m
Weight & dimensions
Width
432 mm
Depth
590 mm
Height
85 mm
Weight
17.5 kg
Package width
810 mm
Package depth
600 mm
Package height
245 mm
Package weight
28.2 kg
