Introduction

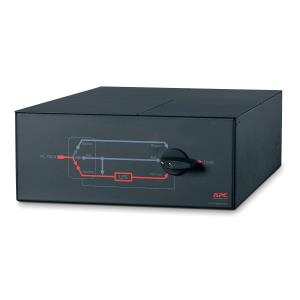

APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output
Extremely reliable service bypass panels designed for APC InfraStruXureŽ Type A, Smart-UPS, and Symmetra UPS products.
Features
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Rack capacity
4U
Country of origin
China
Power
AC input voltage
200 / 208 / 230 / 480 3 phases
AC output voltage
120 / 200 / 208 / 230 V
AC input frequency
50 - 60 Hz
Ports & interfaces
Output connections
hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s); hard wire 4-wire (2P + N + E) for 1 zone(s)
Certificates
Compliance certificates
RoHS, REACH, WEEE
Certification
CSA; GOST
Weight & dimensions
Width
432 mm
Height
178 mm
Depth
660 mm
Weight
21.4 kg
Weight
21.4 kg
Technical details
Preferred mounting position
lower
Take-back system
No
Packaging without single use plastic
No
Sustainable packaging
No
Packaging recycled materials
Recycled cardboard
Mounting
front
Logistics data
Customs product code (TARIC)
8537109199
Performance
Compatible products
Hard Wire 3 wire (1PH+1PH+G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Other features
Dimensions (WxDxH)
432 x 660 x 178 mm
Operating altitude
0 - 4500 m
