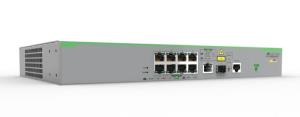

Switch 8 x 10/100T POE+ ports and 1 x combo ports (100/1000X SFP or 10/100/1000T Copper)-Fixed AC power sup

Switch 8 x 10/100T POE+ ports and 1 x combo ports (100/1000X SFP or 10/100/1000T Copper)-Fixed AC power sup

£396.89
£476.27
Part Number: AT-FS980M/9PS-50
Language: IN
Real time Stock Check

Product Details

Introduction

Fast Ethernet Managed Access Switch
The FS980M/9PS features 8 x 10/100TX PoE+ ports and 1 combo (10/100/1000T or 100/1000X SFP) uplink port.

The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management FrameworkT (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.

Management features

Switch type

Managed

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Gigabit Ethernet (copper) ports quantity

1

Combo SFP ports quantity

1

Console port

RJ-45

Network

Networking standards

IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.3z

Copper ethernet cabling technology

10BASE-T,100BASE-TX,1000BASE-TX

Link aggregation

Y

VLAN support

Y

Virtual LAN features

Private VLAN,Port-based VLAN

Data transmission

Switching capacity

3.6 Gbit/s

Throughput

2.68 Mpps

MAC address table

16000 entries

Jumbo frames support

Y

Jumbo frames

10000

Security

Access Control List (ACL)

Y

IGMP snooping

Y

BPDU filtering/protection

Y

Multicast features

Multicast support

Y

Design

Rack mounting

N

Product colour

Grey

LED indicators

Y

Safety

FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1

Certification

CE, cULus, TUV, RoHS

Performance

Memory type

DDR2-SDRAM

Internal memory

128 MB

Flash memory

128 MB

Noise level

37 dB

Power

Power consumption (max)

13 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet plus (PoE+) ports quantity

8

Power over Ethernet (PoE) power per port

8 W

Total Power over Ethernet (PoE) budget

150 W

Operational conditions

Operating temperature (T-T)

0 - 50 C

Storage temperature (T-T)

-20 - 60 C

Operating relative humidity (H-H)

5 - 90%

Storage relative humidity (H-H)

5 - 95%

Heat dissipation

660 BTU/h

Weight & dimensions

Width

210 mm

Depth

275 mm

Height

42.5 mm

Weight

2.5 kg

Packaging data

Package weight

4.2 kg
