Introduction

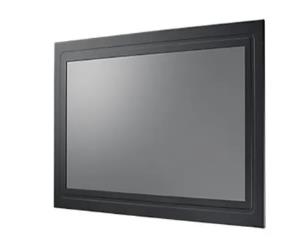

The Advantech IDS-3210 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
Display
Display diagonal
26.4 cm (10.4")
Display technology
LCD
LED backlight
Yes
Display resolution
1024 x 768 pixels
Display brightness
500 cd/m²
Touchscreen technology
Resistive
Contrast ratio
1000:1
Viewing angle, horizontal
176°
Viewing angle, vertical
176°
Performance
Mounting type
Wall/Tabletop
Wi-Fi
No
Product colour
Black
VESA mounting
Yes
Ports & interfaces
USB 2.0 Type-A ports quantity
1
Power
Power source type
DC
Power supply location
External
Input voltage
12, 100 - 240 V
Weight & dimensions
Width
290.2 mm
Depth
35.1 mm
Height
237.6 mm
Weight
2.1 kg
Packaging data
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-30 - 70 °C
Sustainability
Sustainability compliance
Yes
Other features
Compliance certificates
CE, Federal Communications Commission (FCC)
